Whalen's Speed R&D has developed the highest horsepower output 91/93 octane tune available on the market for your 2020 Turbo RR Can-Am X3!
The WS195RR Power Package has quickly become our most decorated package with wins and podium finishes in desert, short course, and endurance racing.
WSRD WS195RR Package | 91/93 Octane
What's Included?

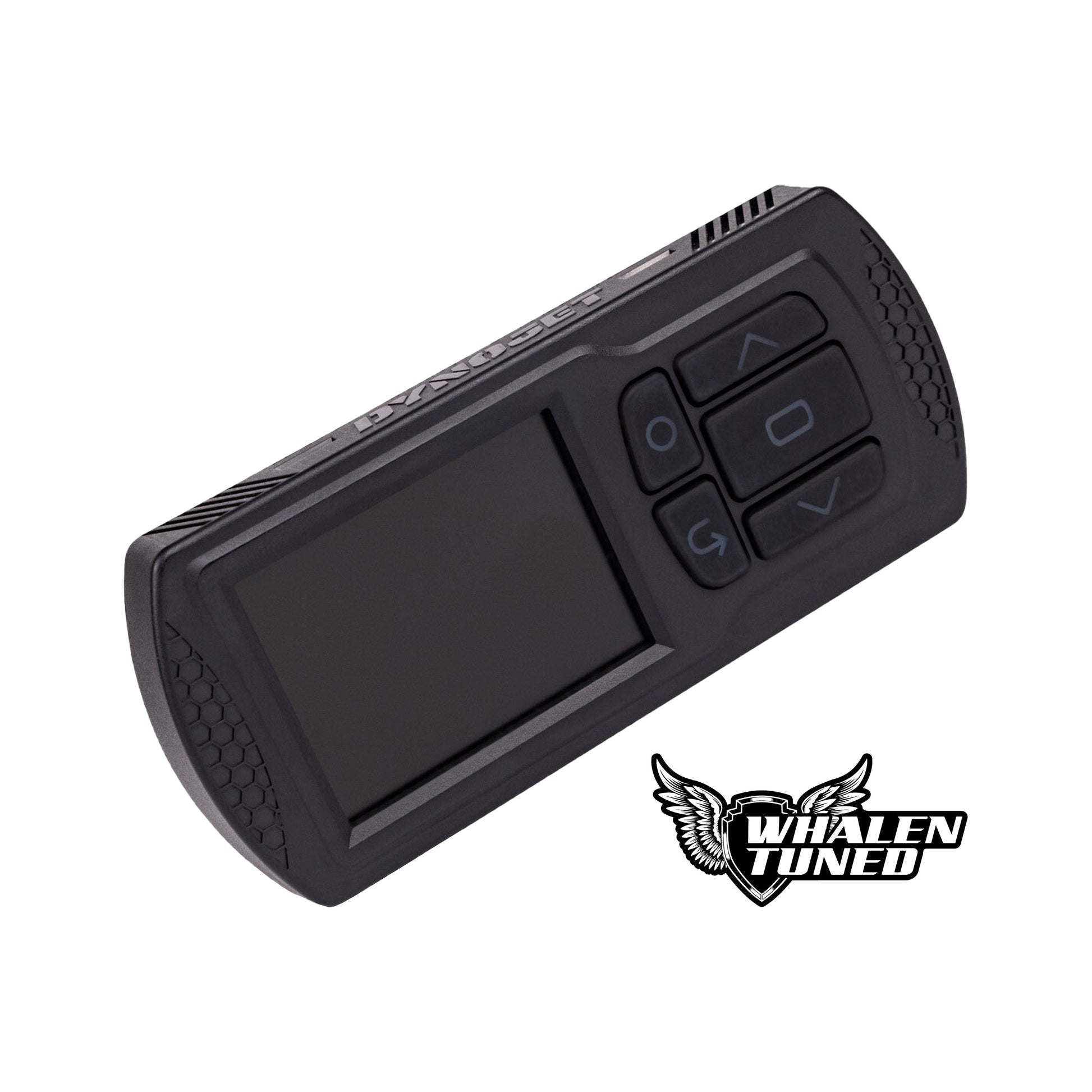

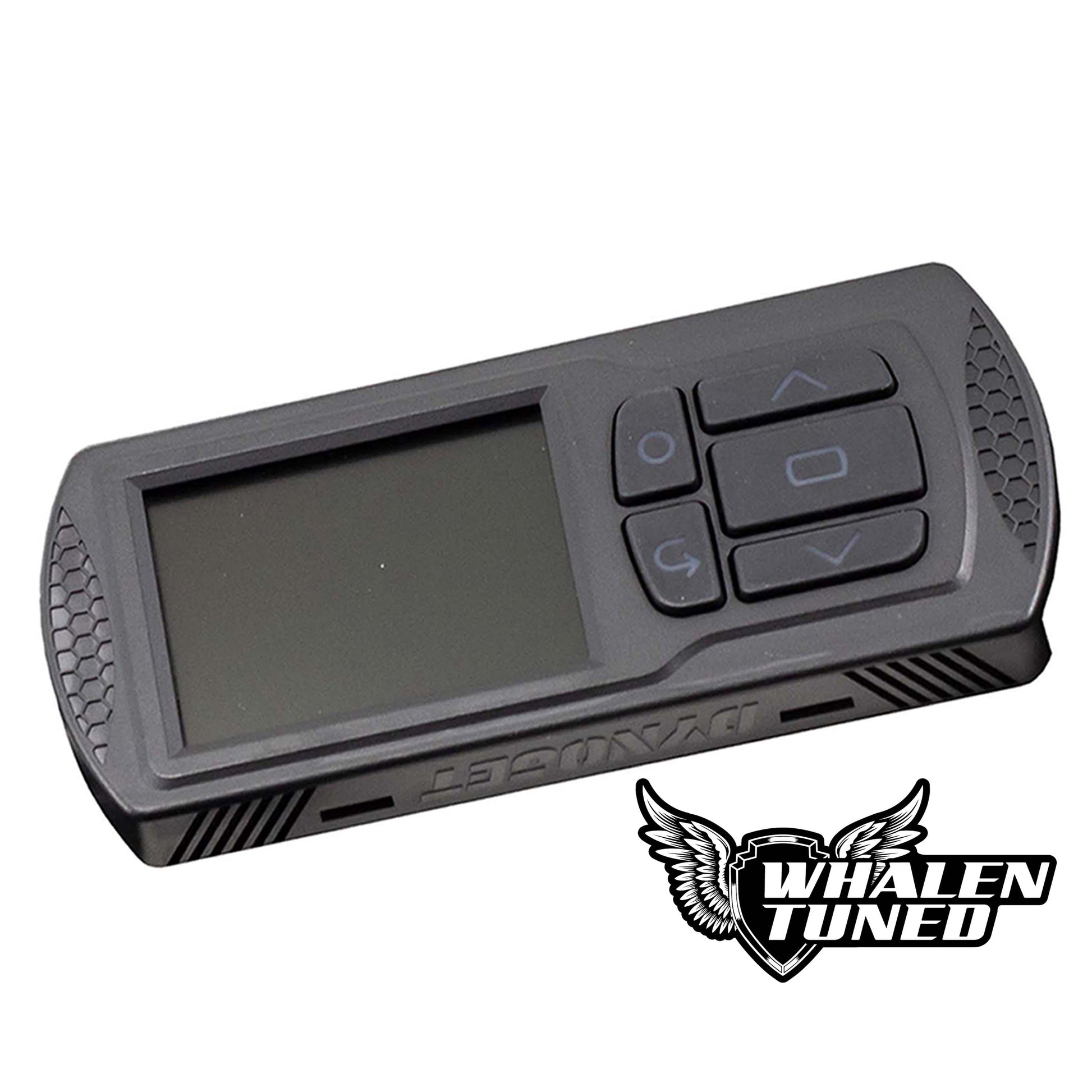

- DynoJet Power Vision (PV3)
- WSRD WS195RR Calibration
- 91 and 93 octane tune are preloaded for simple install
- 195HP RR Models | Stock; 169.6 Wheel Horsepower | 195 Crank Horsepower
- 91/93 Octane | WSRD WS195RR Tune; 207 Wheel Horsepower | 232 Crank Horsepower
- Boost Pressure: 21-22.5 PSI
- These are 93 Octane results on Mainline Hub Dyno
- This power output is also supported by KWI Clutching - recommended clutch package listed below
- Includes a high elevation tune to adjust targets from >3500ft
- Please adjust crack pressure to 10 PSI
WS195RR Tune Features:
- Boost pressures are increase up to 21-22.5 PSI respectively for the octane you choose to run. Crack pressure set to 10 PSI.
- Radiator fan activation temp lowered from ~205* F to ~185* F
- Intercooler fan activation temp lowered from ~140* F to ~95*F
- Torque limits for L raised to 100%, reverse raised to 75%
- Component protection mode for fueling lowered to increase torque and horsepower, especially right after the pedal is floored.
- Ignition timing per cylinder is optimized for maximum power as well as drive-ability, careful consideration was used not only for when at wide open throttle, but as well as cruise, throttle transitions, ect.
- Throttle feel and control is thoughtfully improved, to control through a whoop section, on/off feel in short course style racing or playing in the woods, eco mode is improved but offers the less aggressive pedal for technical rock sections or simply loading on a trailer.
- Speed limits removed, your speed limit is your rev limiter/gear
- Rev limiter raised to 90000 RPM
- Rough road detection is raised to max to prevent power loss.
- Includes a 91 octane, 91 octane high elevation, and a 93 octane file.
Clutching Options: (please select the additional link below to add your recommended clutching option)
- KWI Clutching AO Base + #4 Helix
- WSRD Spec STM Powersports Rage 4WCP Primary
Spark Plug Options:
- OEM NGK Spark Plug
- OEM Part Number: 415130363
- NGK Part Number: LMAR9AI-8
- Auto Parts Store Number: 97225
- WSRD Spark Plugs
Drive Belt Options:
- BRP Drive Belt: 422280652
- WSRD World's Best Drive Belt
Package Options:
- WSRD Catch Can Kit
- WSRD PV3 Mounting Arm
- WSRD 10" Fan Shroud Assembly
- WSRD Terminator Intercooler
- WSRD Exhaust Systems
- RPM SxS Downpipes & Exhaust Systems
WSRD WS220RR-SC Package | 98+ Octane Race Fuels
The WS220RR-SC Package requires our fuel pressure modification. Please review this process before purchase. This modification is shown in the video below:
This package was designed in conjunction with several of the active short course racing series rule books. This IS NOT our standard retail package offered to the public. Please note this before purchase. If this is unclear please contact the WSRD Sales Office; 269.415.0040.

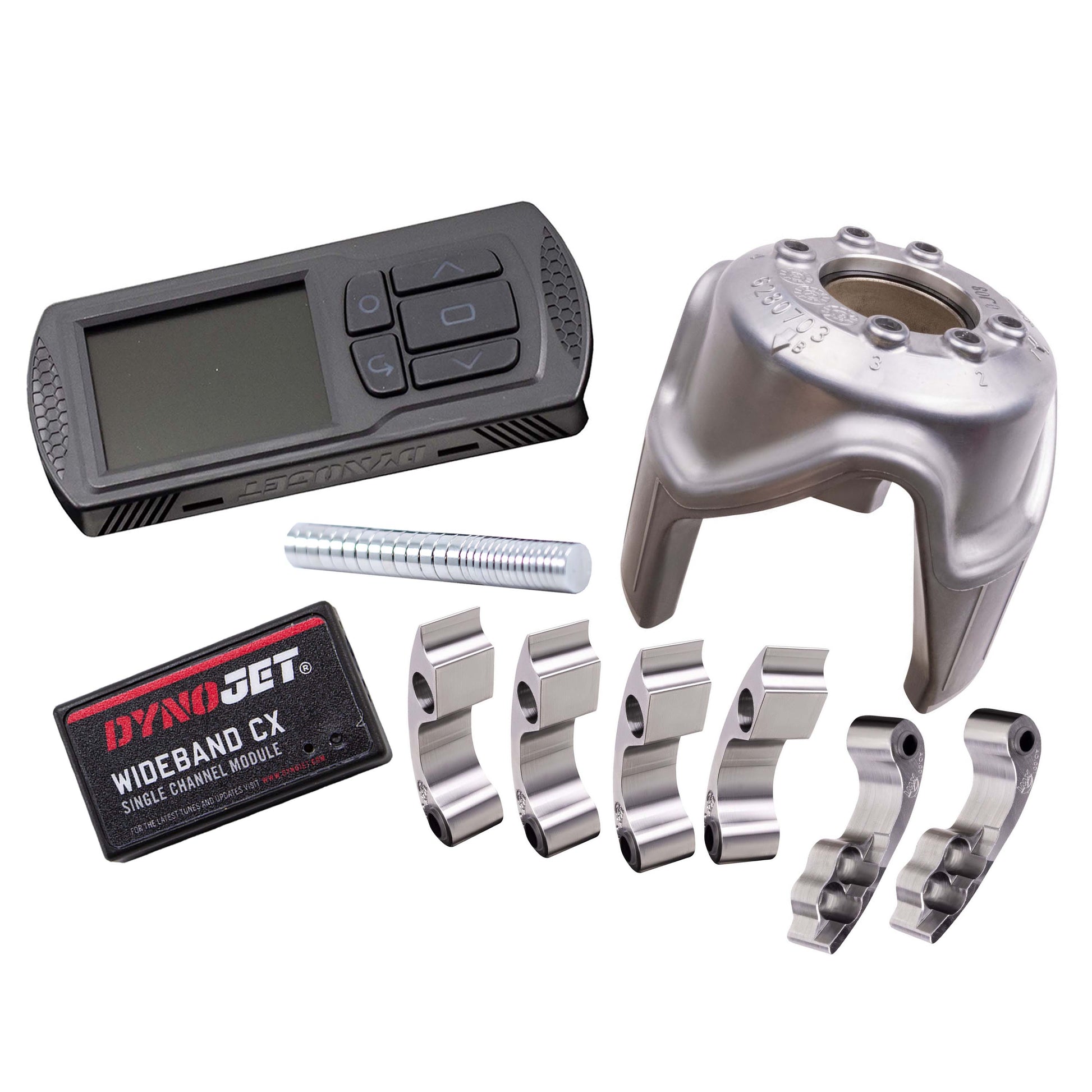

What's Included?
- DynoJet Power Vision (PV3)
- WSRD WS220RR-SC 98+ Octane Calibration
- DynoJet Wideband for AFR Datalogging
- custom datalog review and revisions for maximum performance
- KWI Clutching Complete AO Green Clutch Kit
- Includes KWI Clutching DR Race Helix
Power Output: (Conversion Factor of 12% - Wheel to Crank)
- Stock: 169.6 Wheel Horsepower (195.0 Crank Horsepower)
- 98+ Octane | WS220RR-SC Tune: 220 Wheel Horsepower | 246 Crank Horsepower
- These results are on VP UTV96
- This package is also supported by KWI Clutching - recommended clutch package listed below
- Please adjust crack pressure to 14 PSI
Clutching Options:
- WSRD Spec STM Powersports Rage 4WCP Primary
Spark Plug Options:
- OEM NGK Spark Plug
- OEM Part Number: 415130363
- NGK Part Number: LMAR9AI-8
- Auto Parts Store Number: 97225
- WSRD Spark Plugs
Drive Belt Options:
- WSRD Ultimate Drive Belt
Package Options:
- WSRD Catch Can Kit
- WSRD PV3 Mounting Arm
- WSRD 10" Fan Shroud Assembly
- WSRD Terminator Intercooler
- WSRD Exhaust Systems
- RPM SxS Downpipes & Exhaust Systems
